About Us
Sergey Avdonin is a Steadicam operator
with over 20 years of experience in film
and advertising.
He has hundreds of projects under his belt and has worked with a wide variety of cameras, from classic film-cameras to modern digital. This experience helped him understand one essential thing: perfect equipment should become an extension of the operator, not just a tool in their hands.
It was this principle that became the foundation of his own stabilizer.
The first sketches appeared back in 2004, and today his development has evolved into one of the lightest and most well-designed Steadicams in the world. The construction is 70% carbon fiber, making the system incredibly durable yet surprisingly light and balanced.
The stabilizer was created with the understanding of how crucial it is for equipment not to fail at a critical moment during a shoot.
On this website, you can not only learn more about our system but also purchase everything you need for your work: the sled, arm, and vest.
We are always ready to help you with your selection and answer any questions you may have - because we understand the importance of details.

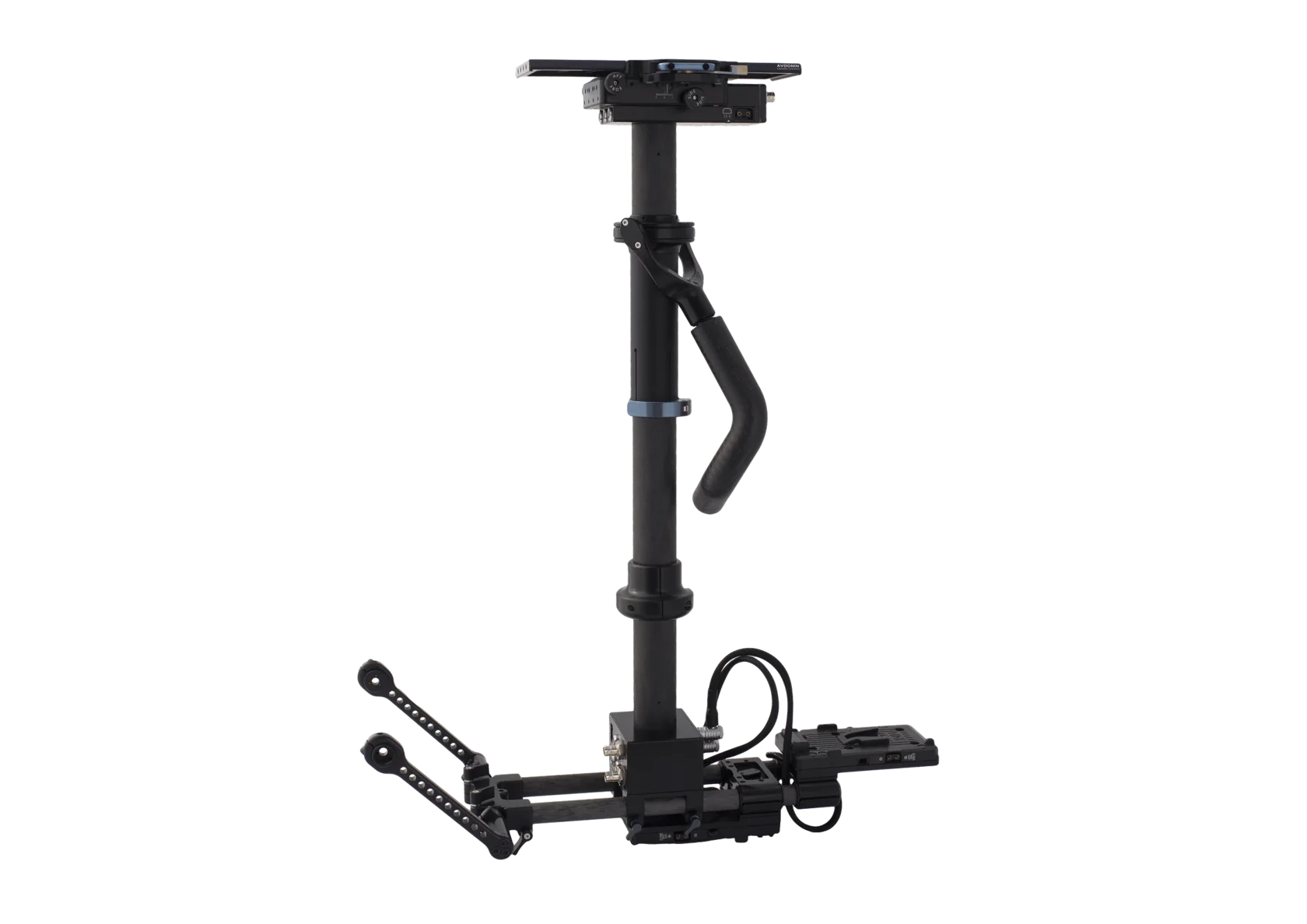

R5 Sled
Contact Us
Compact and modular system with hot-swap batteries, designed for professional cinema cameras, including the ARRI Alexa 35.
1. Telescopic Post
2. Top Stage
3. Ergonomic Handle and Controls
4. Battery System
5. Compatibility:
6. Bottom Junction Box
- Material and Construction: Thick-walled carbon-fiber tube.
- Mechanism: Telescopic, with anti-rotation lock.
- Diameter: 40 mm.
- Length: Adjustable.
- Minimum: 68 cm (optional)
- Maximum: 109 cm (optional)
2. Top Stage
- Camera Mounting Platform: Features an automatic quick-release lock.
- Connectors and Outputs:
- Power: 2 × D-Tap (14.8 V), 3 × 2-pin Lemo (14.8 V), 1 × 4-pin (15–30 V) for camera power.
- Video: 2 × SDI inputs.
3. Ergonomic Handle and Controls
- Handle: Carbon fiber ergo-handle.
- Monitor Mount: Adjustable monitor mount (yoke) for different monitor sizes.
- Additional: Plastic ring for docking in the "low-mode" position.
4. Battery System
- Battery Plates: 2 separate V-Mount plates with quick-lock levers.
- Hot-Swap Function: Ability to replace batteries without powering down the system (available in the 15V configuration).
- Voltage Drop Under Load: Only ~0.3–0.4 V.
- Indication: Each battery plate is equipped with an LCD voltmeter with auto-rotate (auto-flip) function.
5. Compatibility:
- Main Camera Power: Capability to use a B-Mount battery (for Alexa 35) via a V-Mount → B-Mount adapter (sold separately).
- Important: All additional devices (monitor, transmitters) are powered from the V-Mount batteries.
6. Bottom Junction Box
- Connectors and Outputs:
- Power: 1 × D-Tap (14.8 V), 3 × 2-pin Lemo (14.8 V).
- Video: 2 × SDI outputs.
- Power Management: Voltage selector switch 15–30 V.

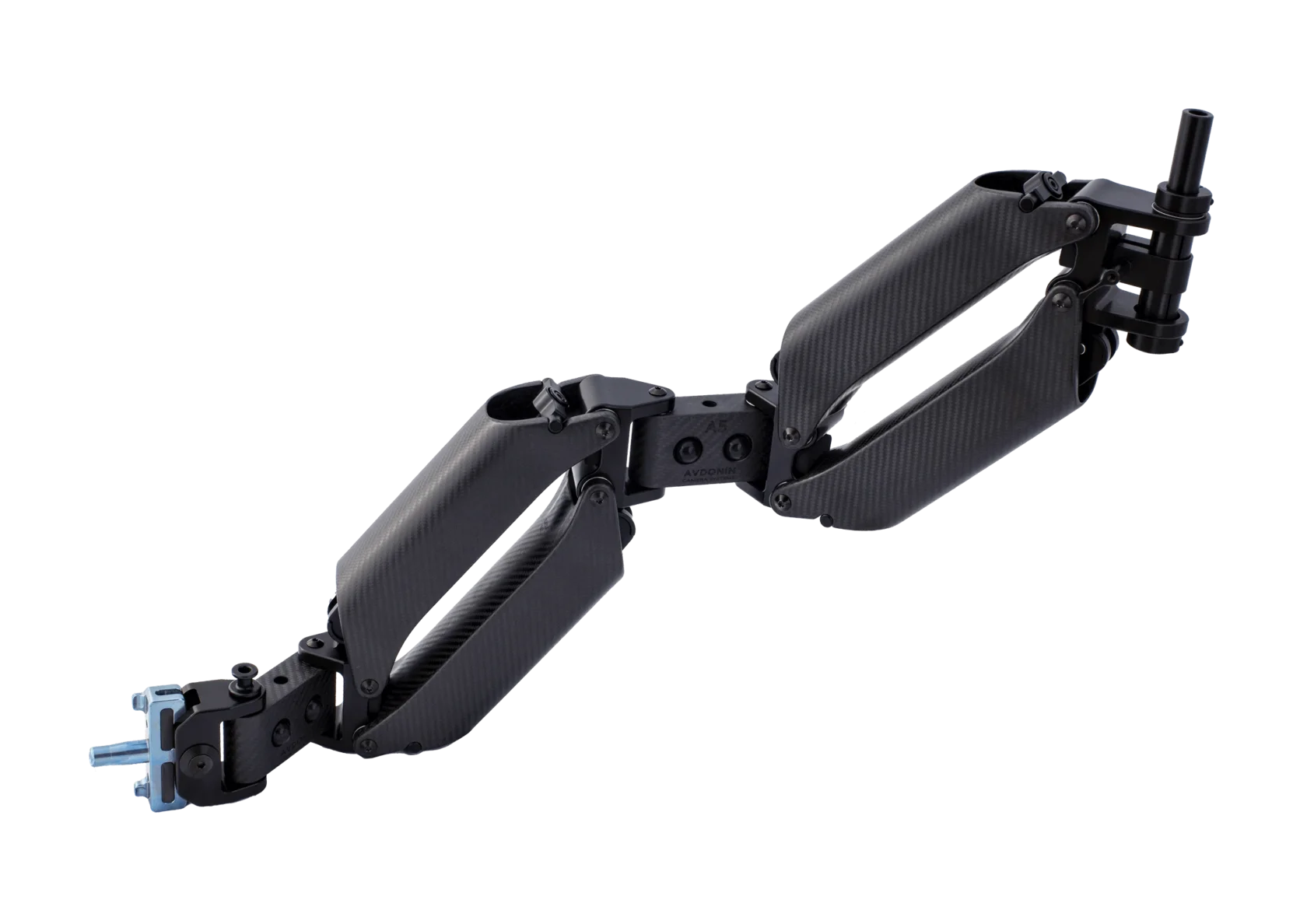

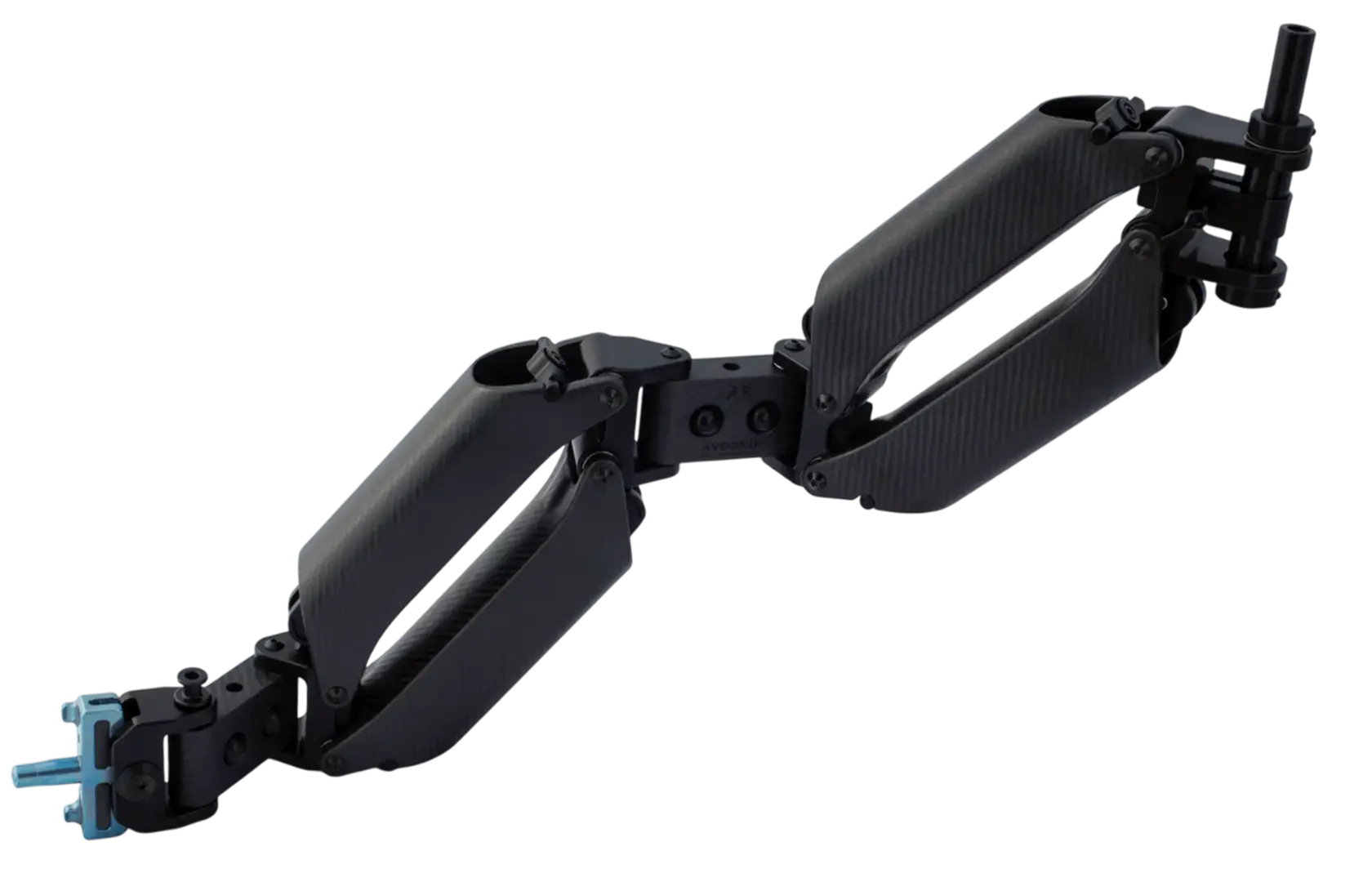

A5 Arm
Contact Us
Exceptional smoothness and softness of operation across the entire weight range, ensuring comfortable work for the operator.
1. Construction and Materials
2. Adjustment and Calibration System
3. Compatibility
- Frame: Made of carbon-fiber, providing high strength and low weight.
- Arm Weight (with mating-block): 4.2 kg.
- Load Capacity:
- Base: Up to 32 kg.
- Maximum (with additional tensioners): Up to 40 kg.
- Operating Load Range: From 6 to 40 kg.
- Boom Range: 77–80 cm.
2. Adjustment and Calibration System
- Tensioners: Replaceable rubber elements.
- System Advantage: Easy installation and removal, allowing for quick and precise adjustment of the arm's stiffness to match the specific equipment weight.
- Configuration: The base load capacity of 32 kg can be increased to 40 kg with an additional set of tensioners.
3. Compatibility
- Includes an arm post with a diameter of 19 mm or 16 mm to choose from.

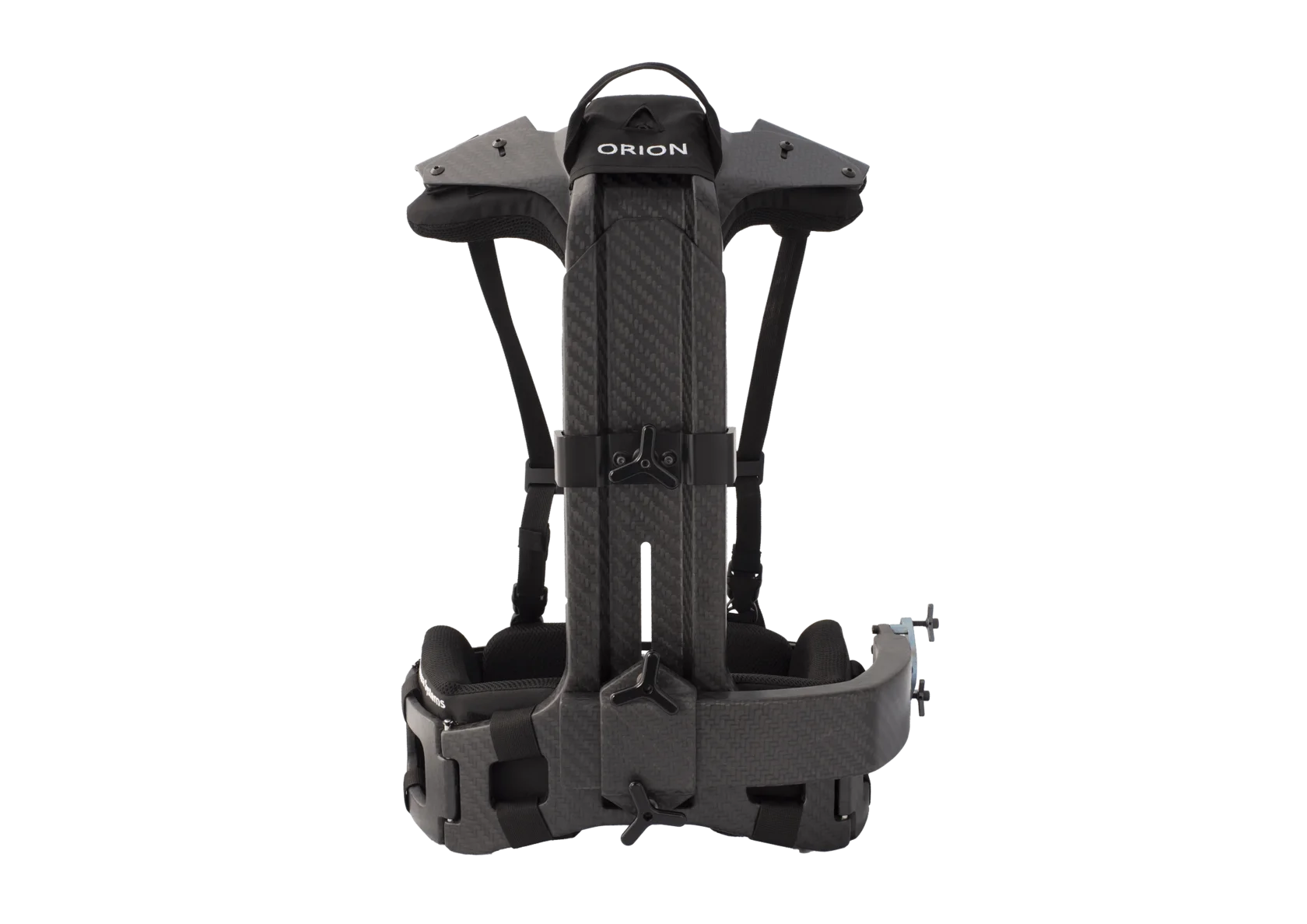

Orion Vest
Contact Us
The lightest vest in its class, featuring a fully adaptive adjustment system for maximum comfort and mobility.
1. Weight and Design
2. Adjustment System
3. Ergonomics and Comfort
- Weight: 4 kg - the lightest among back-mount vests.
- Material: Specialized lightweight composite materials.
- Adjustments: Full adaptation to the operator's anthropometry.
2. Adjustment System
- Back: Adaptive design that mimics the movement of the upper back.
- Waist Section: Adjustable with replaceable segments for any waist circumference.
- Fasteners: Secure ratchet locks for quick donning/removal.
3. Ergonomics and Comfort
- Front Pads: Anatomical design prevents compression of thigh muscles and nerves.
- Load Distribution: Optimized for long-term use without discomfort.
- Mobility: Preserves natural range of motion.

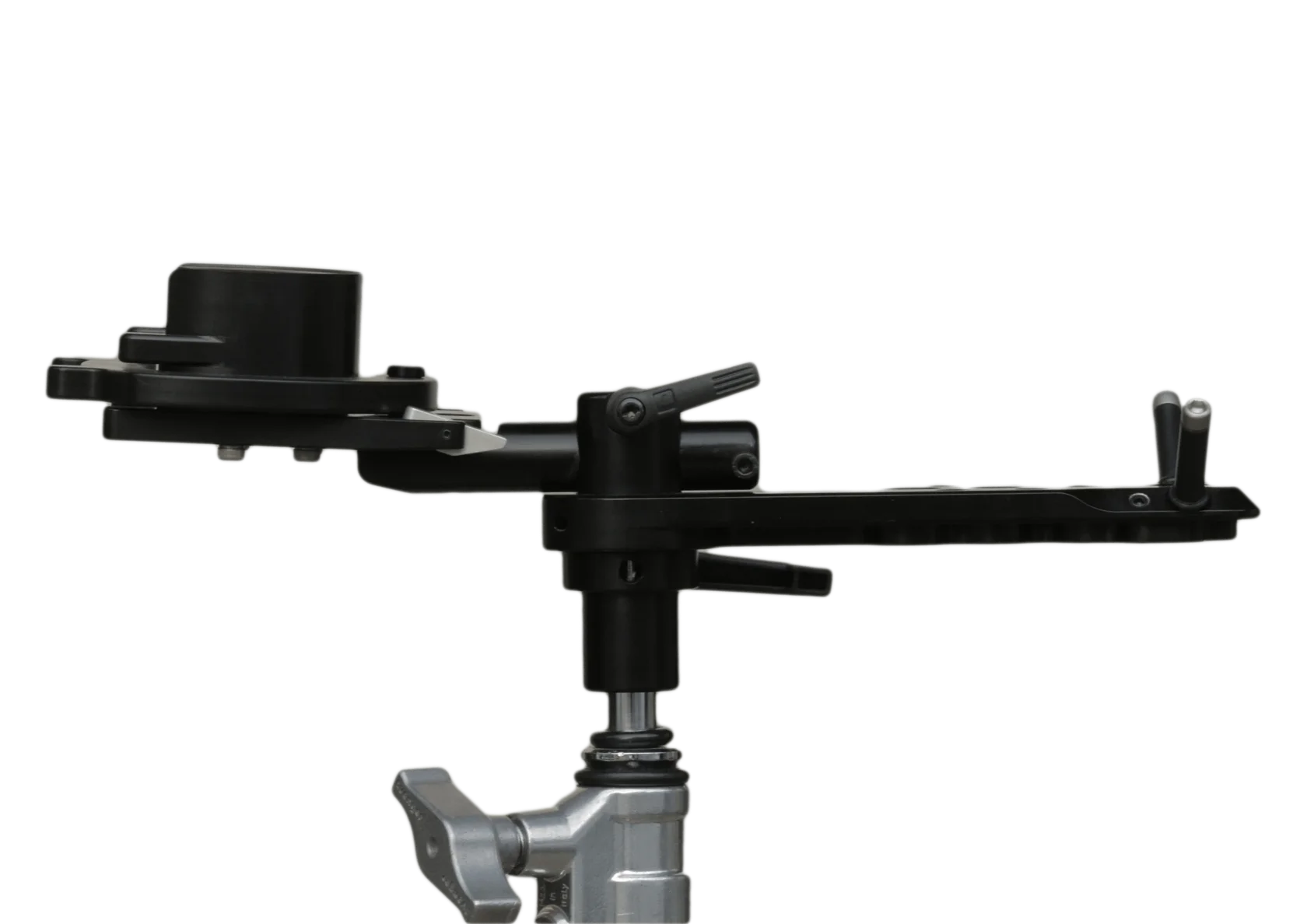

Padded Dock
Contact Us
A professional docking station that ensures precision, convenience, and seamless integration with the Volt system. The ideal solution for operators who value ergonomics and functionality during filming.
1. Compatibility and Design
2. Functional Capabilities
3. Operational Advantages
- Integration: Full compatibility with the Volt equipped sleds.
- Manufacturing Precision: High-quality machining of parts for reliable and durable operation.
- Post Diameter: Compatible with 40 mm or 50 mm posts (optional).
2. Functional Capabilities
- Tilt Adjustment: ±20° tilt adjustment for framing during a "stand-by".
- Additional Features: Hook hangers for convenient storage of accessories (arm, vest, bag, etc.)
3. Operational Advantages
- Ergonomics: Quick setup and user-friendly operation.
- Versatility: Supports various stabilizer configurations.
- Practicality: Additional elements for workspace organization.
OUR CLIENTS
FAQ
The equipment can be tested in the workshop (address and time available upon request via email or in the Telegram channel).
Prices are also available upon request in the Telegram channel or via email. Prices may fluctuate due to changes in the ruble exchange rate.
All equipment is made-to-order, with a lead time of 2 months or more. However, some items may occasionally be in stock.
All products come with a 3-year warranty. The reliability of each component has been brought to a high level to ensure comfortable operation for our clients. We provide maximally user-friendly service.
